Terrain mesh layer

[Alienhead]

Is this a know bug or not? I couldn't find it no where and thought I'd report it 'just in case'.





[Andy90]

whats your camera range ?



[Alienhead]

.1, 1000

[Andy90]

hmm this should not be the problem then. Are the trees also mesh layer ?

[Josh]

Make sure you have the current shaders.

If the problem persists please upload the model that causes this.

[Alienhead]

Terrain icon and others on top is hidden under desktop DPI.

[Alienhead]

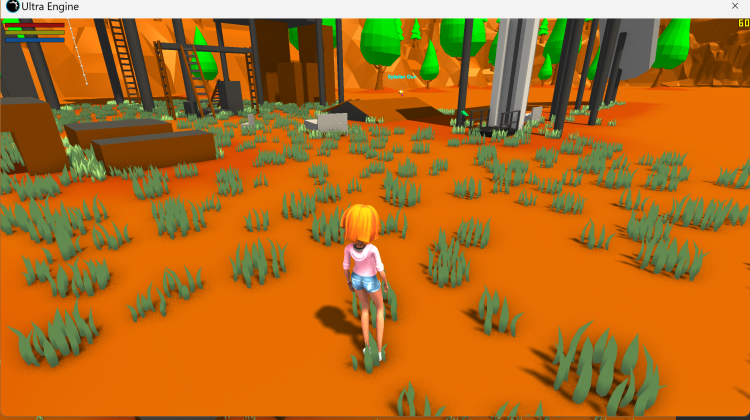

The grass seems to be taking no shadowing or coloring either,  it looks unlit no matter what i do.



[Josh]

Please upload the model, material,. and any textures it uses.

[Alienhead]

Attached



grass1.zip

[Josh]

In Shaders/MeshLayer/Vertex.glsl, line 57 should look like this:
center.y = textureLod(elevationmap, texcoord, 0).r * terrainscale.y;

If it looks like this the object will flicker:
center.y += textureLod(elevationmap, texcoord, 0).r * terrainscale.y;

[Josh]

Does this resolve your issue?

[Alienhead]

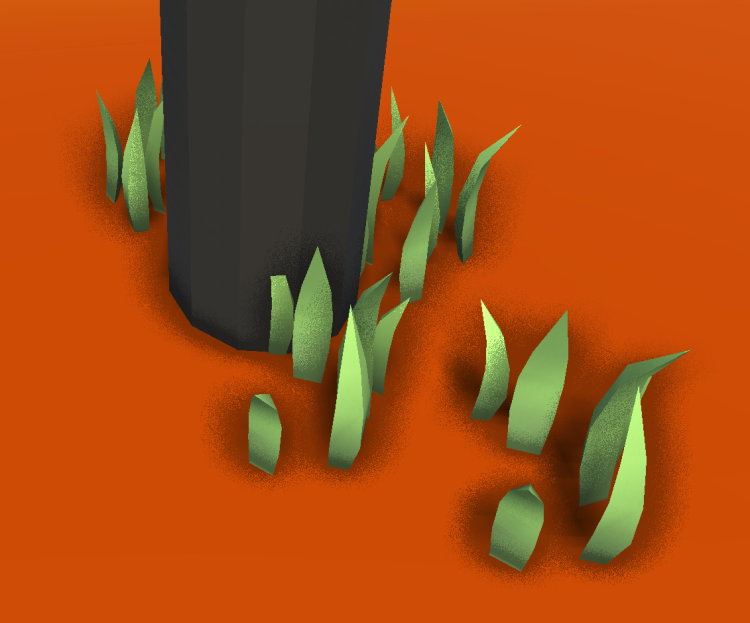

Still flickering, but now it's all laid out in this weird stretched format.

That is the same model as this :

[Josh]

1. Make sure your shaders are up to date.
2. Change the seed value for the mesh layer, then change it back. This will force re-building of the noise data.

[Alienhead]

This is me changing the seed values.. I always look for Sync after i do updates so Im never worried about shaders or exe syncs not being right.

[Josh]

My bad, shaders are updated now.

[Alienhead]

Failed to compile those two shader updates

[Josh]

Uh-oh. I was working on some math stuff to make the rotate-to-normal option work, and I did not update that quaternion shader code file.

The fix is uploaded now.

[Alienhead]

All working! and looking good to. Well done.



[Josh]
