How to Transparency and framework ?

[Wchris]

i have a problem with tranparency



There is a tutorial about transparency, but it's not using framework.



i used ADN to create a red transparent texture for the bouda, but when using it in my project the transparent object is overriden by water and terrain.



***********************************************************************
                 Material Generated by ADN 1.1 R3

***********************************************************************
texture0="abstract::red.dds"
clamp0=0,0,0
color=1.00000000,0.141176477,0.141176477,0.589999974
blend=1
depthmask=0
depthtest=0
alphatest=0
overlay=0
zsort=0
cullface=1
castshadows=0
specular=0.759999990
bumpscale=3.06999993
gloss=0.460000008
shader="abstract::mesh_diffuse.vert","abstract::mesh_diffuse_specular.frag"
shadowshader="Abstract::mesh_shadow.vert",""

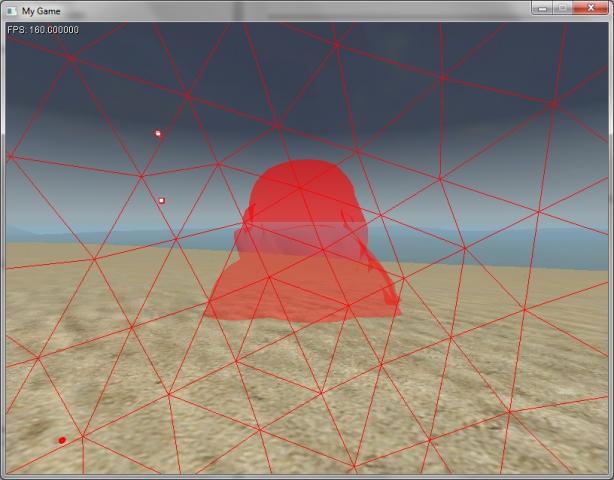

I don't understand what's going on. here's a screenshot. Any clue ?



tryed to use the transparency world to load the mesh and material, but same result



Thank you, this is driving me nuts





i hope in LE3 it will be easyer to use transparency without playing with worlds, just telling the transparency ratio et voilà, but LE3 is far away

redbouda_transparent.zip

[Wchris]

Still searching...



got something working with

***********************************************************************
                 Material Generated by ADN 1.1 R3

***********************************************************************
texture0="abstract::red.dds"
clamp0=0,0,0
color=1.00000000,0.141176477,0.141176477,0.589999974
blend=1
depthmask=1
depthtest=1
alphatest=1
overlay=0
zsort=1
cullface=1
castshadows=0
specular=0.759999990
bumpscale=3.06999993
gloss=0.460000008
shader="abstract::mesh_diffuse.vert","abstract::mesh_diffuse_bumpmap.frag"
shadowshader="Abstract::mesh_shadow.vert",""

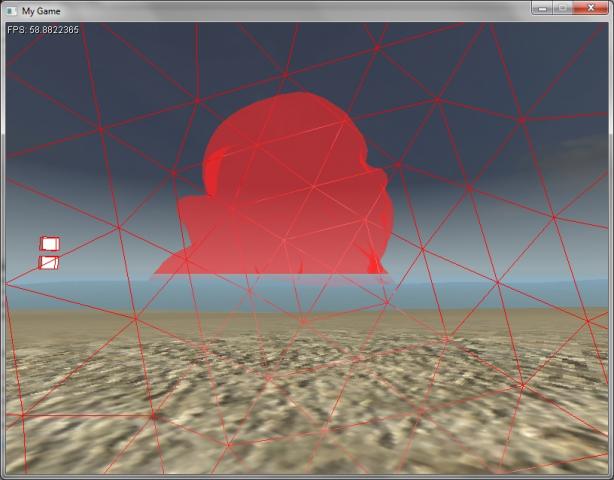

Now it's transparent but visually it's not like the first screenshot



i did not want it to be affected by light or shadow, i just wanted a transparent object that acts like a ghost 3D placeholder and tells the players where to drop his item with the same shape.





[Josh]

This lesson will help:

http://leadwerks.com/werkspace/index.php?/page/resources/_/programming/cpp/transparency-and-refraction-r10

[Wchris]

This lesson will help:

http://leadwerks.com/werkspace/index.php?/page/resources/_/programming/cpp/transparency-and-refraction-r10

thank you, i have probably missed something, i'll try again

[AggrorJorn]

I would experiment with z-sort and overlay. They both have affect on which layer is rendered first etc.

[Wchris]

This lesson will help:

http://leadwerks.com/werkspace/index.php?/page/resources/_/programming/cpp/transparency-and-refraction-r10

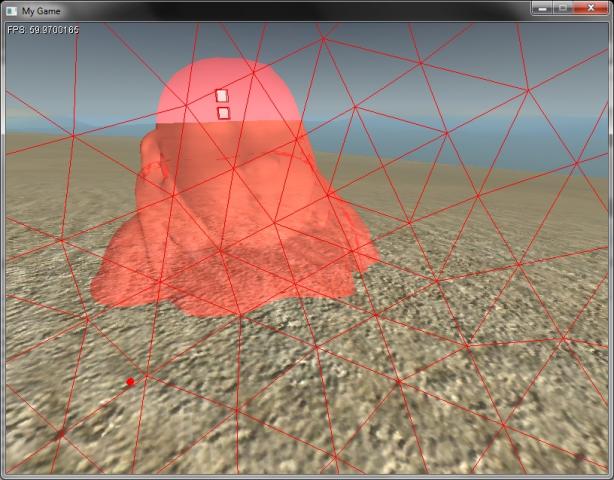

Ok got it working ,

loading my mesh into the framework transparency world was not enought

The trick was to render the transparency world myself after RenderFramework like this :

        RenderFramework;
        SetWorld(GetLayerWorld(GetFrameworkLayer(2)));
        RenderWorld;
        LEsetWorld(GetLayerWorld(GetFrameworkLayer(0)));

Why is framework not doing this itself in RenderFramework ? I have no clue but there is probably a reason.



this is the final material file

***********************************************************************
                 Material Generated by ADN 1.1 R3

***********************************************************************
texture0="abstract::red.dds"
clamp0=0,0,0
color=1.00000000,0.141176477,0.141176477,0.589999974
blend=1
depthmask=0
depthtest=1
alphatest=0
overlay=0
zsort=1
cullface=1
castshadows=0
specular=0.759999990
bumpscale=3.06999993
gloss=0.460000008
shader="abstract::mesh_diffuse.vert","abstract::mesh_diffuse_specular.frag"
shadowshader="Abstract::mesh_shadow.vert",""
