thumbstick turning in VR

[ga1pi2ga]

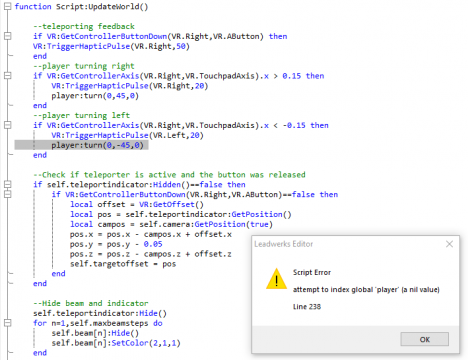

has anyone figured out thumb stick turning in vr? ,i have tried it but keep on getting a error that i do not know how to fix (i am using VRplayer lua the only extra code is here:)

	--teleporting feedback
	if VR:GetControllerButtonDown(VR.Right,VR.AButton) then
	VR:TriggerHapticPulse(VR.Right,50)
	end
	--player turning right
	if VR:GetControllerAxis(VR.Right,VR.TouchpadAxis).x > 0.15 then
		VR:TriggerHapticPulse(VR.Right,20)
		player:turn(0,45,0)
	end
	--player turning left
	if VR:GetControllerAxis(VR.Right,VR.TouchpadAxis).x < -0.15 then
		VR:TriggerHapticPulse(VR.Left,20)
		player:turn(0,-45,0)
	end

[Josh]

Well, it means the player variable is nil. What is it supposed to be?

[ga1pi2ga]

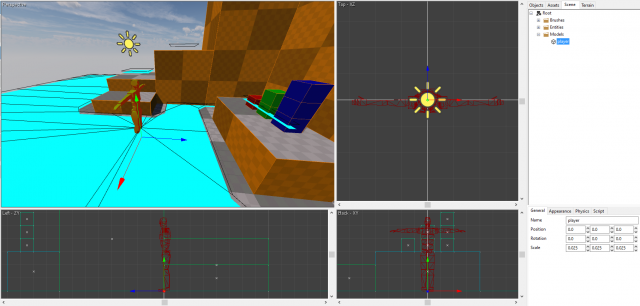

i am trying to turn the player using Turn but i don't have any idea how to turn a model

[Josh]

Well, if the entity is the one the script is attached to you would say this:

self.entity:Turn(0,1,0)

Or you need to make "player" equal to the entity you want to turn.



[ga1pi2ga]

thank you that fixed it but apparently this is not the way to turn in vr (the camera and controllers are not turned with the player model)

[Josh]

Ah Okay.

Turning the world around the VR player is only supported if you opt into the beta branch on Steam.

This command offsets the position:
https://www.leadwerks.com/learn?page=API-Reference_Object_VR_SetOffset

If you call VR:SetOffset(position, rotation) or VR:SetOffset(x,y,z,pitch,roll,yaw) then it will turn the world around the player.

[ga1pi2ga]

okay now i just cannot teleport outside of a small area otherwise the rotation works fine

function Script:UpdateWorld()

	VR:SetOffset(0,0,0,0,avr,0)

	--teleporting feedback
	if VR:GetControllerButtonDown(VR.Right,VR.AButton) then
	VR:TriggerHapticPulse(VR.Right,50)
	end
	--player turning right
	if VR:GetControllerAxis(VR.Right,VR.TouchpadAxis).x > 0.15 then
		VR:TriggerHapticPulse(VR.Right,20)
		avr=avr+5
	end
	--player turning left
	if VR:GetControllerAxis(VR.Right,VR.TouchpadAxis).x < -0.15 then
		VR:TriggerHapticPulse(VR.Left,20)
		avr=avr-5
	end



[Josh]

The way you teleport is by setting the x, y, z values in the offset command.

[Josh]

If you are using the built-in teleport locomotion, let's see...this is at line 299 of VRPlayer.lua:

	--Update offset position
	local pos = VR:GetOffset()
	local d = self.targetoffset:DistanceToPoint(pos)
	local speed = 2.0
	if speed>d then speed=d end
	pos = pos + (self.targetoffset - pos):Normalize() * speed
	VR:SetOffset(pos)

So you would want to add the rotation to that call of the VR:SetOffset() command:

VR:SetOffset(pos,rot)

[ga1pi2ga]

how can i convert from (pitch,roll,yaw) to vec3 rotation? i have looked at rotation but am unsure about the last two arguments

Vec3 Rotation(number pitch, number yaw,number roll, Mat4 src, Mat4 dst)

[ga1pi2ga]

please ignore the previous post figured it out

--Update offset position
	local pos = VR:GetOffset()
	local d = self.targetoffset:DistanceToPoint(pos)
	local speed = 2.0
	if speed>d then speed=d end
	pos = pos + (self.targetoffset - pos):Normalize() * speed
	local arot = Vec3(0,avr,0) --avr is addon rotation
	VR:SetOffset(pos,arot)



[karmacomposer]

If I want to use smooth locomotion and not teleport, how would I call this upon joystick movement? I know it involves VR:SetOffset or VR:GetOffset. Further, I can enter the VR world, but teleport nor locomotion work at all.  I can walk around the world physically.  How do I activate teleport and locomotion with the joystick controllers?

Mike
