Leaves are hidden

[burgelkat]

First, Sorry for my bad English



I have created a Low Poly Tree in Blender and exportet to Leadwerks. If i generate Material now from a Leaves Texture (765x1024 alpha-masked) and put shader (defuse+normal+alphamasked) on it, my leaves are now hidden. What goes wrong ? I hope you understand my question and Thanks for your help

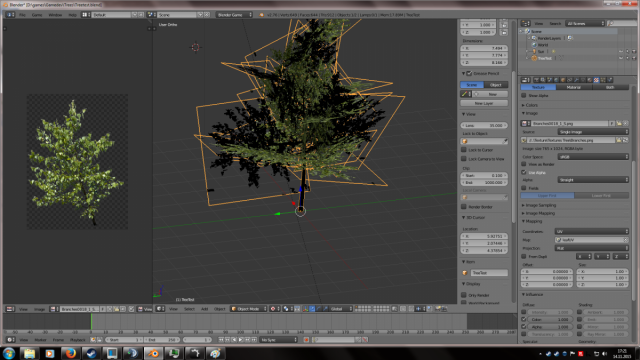

Blender Look

s. file

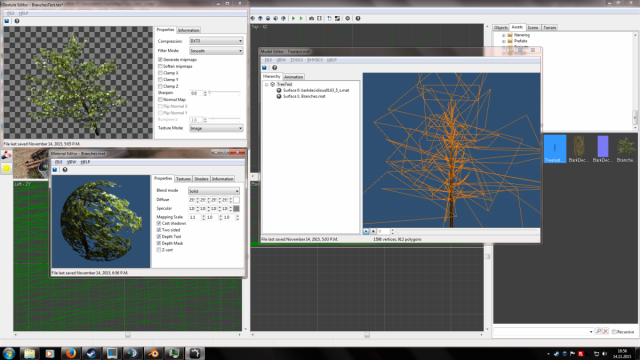

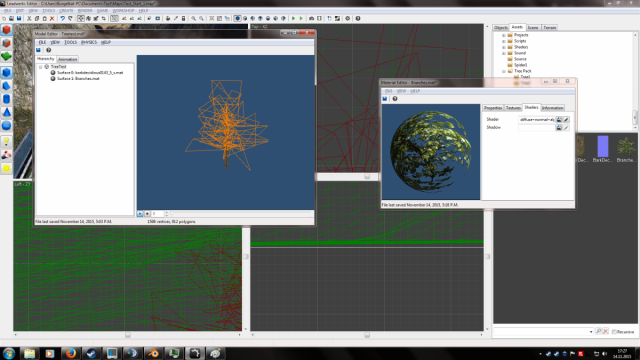

Leadwerks Look

s. file

[shadmar]

Click double sided in the material editor.

[burgelkat]

i clicked double sided on, sorry i forgot to write this

[shadmar]

Blend solid not alpha.

[burgelkat]

Thanks for your answers.. but you see ... i am going to be crazy

[shadmar]

Well I like the guessing game just as much as the next guy

Post your model/materials so we can have a look.

[burgelkat]

I think it comes to scaling the texture , if I put the material in a cube

he looks like hiding . But if I enlarge the cube launched the material appears .

I think the fault lies with me in the creation of branches ( Leaves )in blender.

I put a all Files in a Rar .

Tree8.rar

[shadmar]

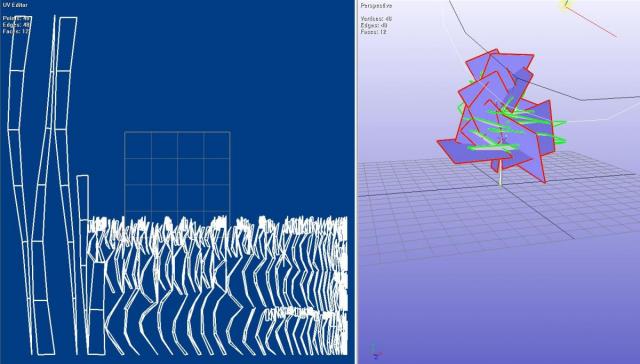

Only your trunk and branches are uvmapped, the leaves are not.

[burgelkat]

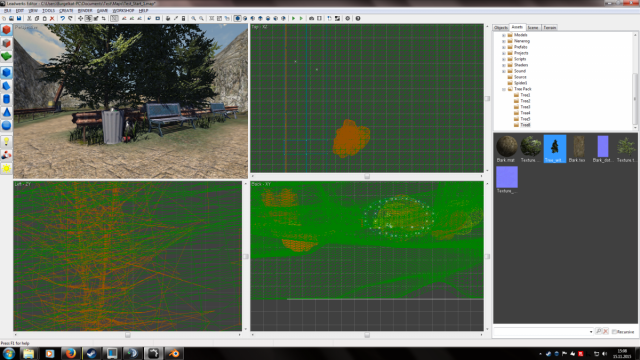

Thats it ... Thanks for your Help.. Here the result
