[Solved] Flowgraph arguments ???

[Roland]

I just cant get my head around how to use arguments in the FlowGraph. In and Out without arguments is no problem. But how to use the arguments. Adding a argument to the in function is easy enough

Script:myFunc( arg )--in
-- use arg
end



But what about the sending side with the out function.

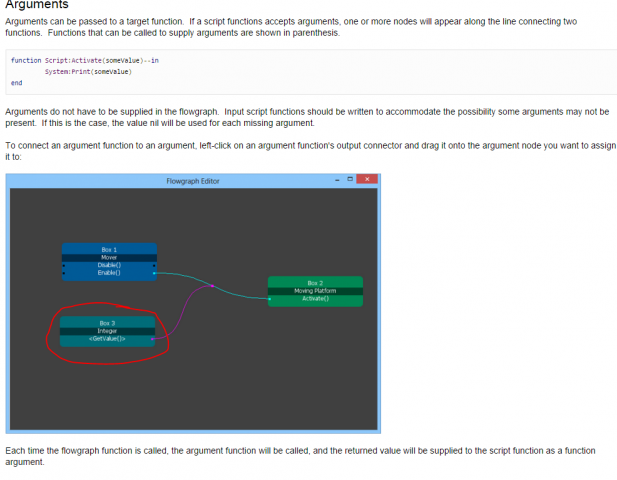

As in the documentation below. How should the LUA script for Box3 look like.

[AggrorJorn]

Updated the docs

function Script:RandomValue()--arg
 return math.random(1,5)
end





Also check out here:

[Roland]

Thanks Aggror.

In fact its said in the documentation. Can't believe I missed that

[josk]

This video helped me to understand flowgraphs.



[AggrorJorn]

Thanks Aggror.

In fact its said in the documentation. Can't believe I missed that

I thought I had added this to the docs a few weeks ago, but as it turns out there are 2 places that talk about the flowgraph editor.

http://www.leadwerks.com/werkspace/page/documentation/_/user-guide/object-scripts-r631

http://www.leadwerks.com/werkspace/page/documentation/_/user-guide/flowgraph-editor-r17
